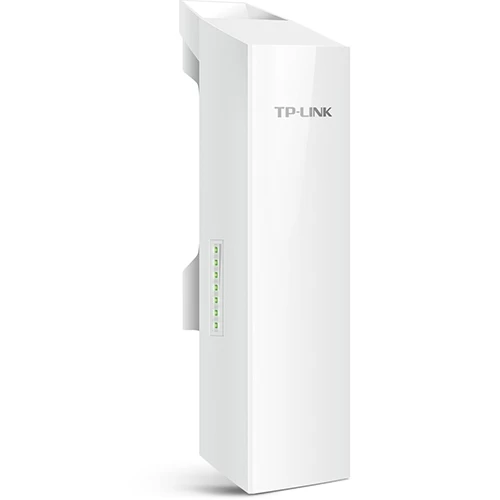

Tp-Link CPE510 300 Mbps 5GHz Outdoor AP Genel Özellikleri

Teknik Özellikler
İşlemci
|
Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc |
Bellek
|
64MB DDR2 RAM, 8MB Flash |
Arabirim
|
1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) 1 Grounding Terminal 1 Reset Button |
Boyutlar (W X D X H)
|
224 x 79 x 60 mm |
Anten Tipi
|
Built-in 13dBi 2x2 Dual-polarized Directional Antenna Beam Width: 45° (H-Plane) / 30° (E-Plane) Note: For more details, please refer to datasheet |
Koruma
|
15KV ESD Protection 6000V Lightning Protection |
Güç Tüketimi
|
13 Watts Max
|
Muhafaza
|
Outdoor ASA stabilized plastic material IPX5 waterproof Certification |
Kablosuz Standartları
|
IEEE 802.11a/n (with Pharos MAXtream disabled) |
Kablosuz Hızı
|
Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) |
Frekans
|
5.15~5.85GHz |
Sertifika
|
CE, FCC, RoHS, IPX5 |
Paket İçeriği
|
Outdoor Wireless CPE 24V 1A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide |
Sistem Gereksinimleri
|
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. |
Ortam
|
Operating Temperature: -30°C~70°C (-22℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
